WHMF-42
威赫
Product description：

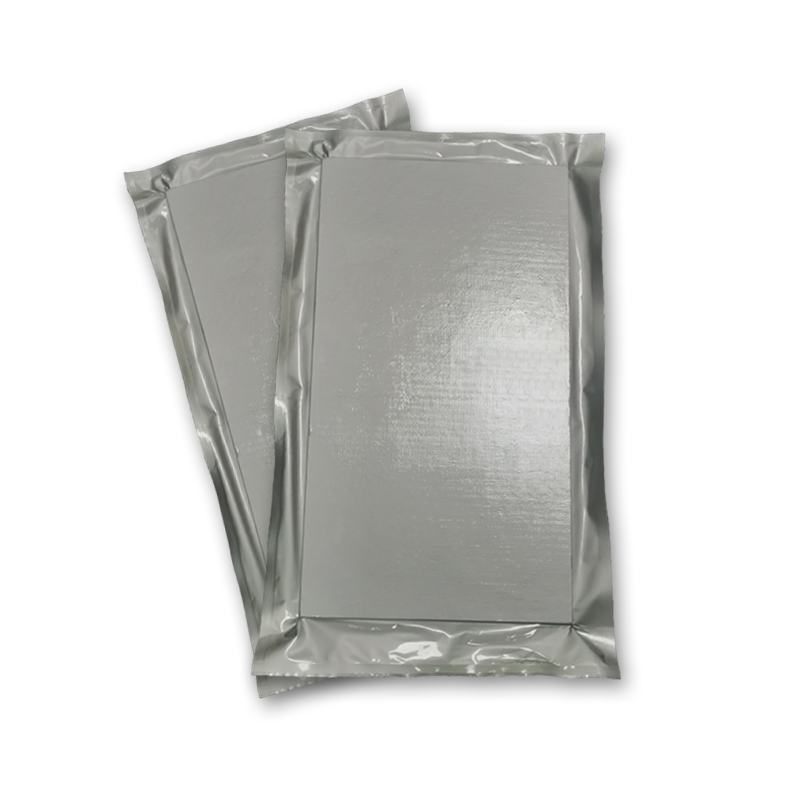

WH nano vacuum insulation board is made of nano high temperature insulation material through vacuum packaging. This material is thin in thickness, can be bent appropriately, has good compressive strength, ultra-low thermal conductivity, and is waterproof, which can meet the requirements of high-temperature section plane and arc surface heat insulation construction.
Product Features：
◇ High temperature resistance ◇ Low thermal conductivity ◇ Environmental protection and safety
◇ Small Heat storage ◇ Hydrophobicity ◇ Bendable ◇ Long service life
Typical application：
Mainly used in ladle, tundish, torpedo tank, cement kiln, aluminum ladle, high temperature furnace, high temperature pipeline, etc.
Performance Index:
Product | WHMF-42 Nano Vacuum Insulation board | ||||
Type | WHMF-42-850 | WHMF-42-1000 | WHMF-42-1100 | WHMF-42-1200 | |
Classification temperature （° C） | 850 | 1000 | 1100 | 1200 | |
Density (kg / m3) | 220-350 | 220-350 | 280-400 | 350-500 | |
Specific heat 800 ° C kJ / kg.k | 1.07 | 1.07 | 1.07 | 1.07 | |
Rupture Stregth (MPA) | ≥0.3 | ≥0.3 | ≥0.32 | ≥0.5 | |
Permanent linear shrinkage% | 800 ° C 24h | ≤ 2.0% | ≤0.5% | ≤0.1% | ≤0.1% |
1000 ° C 24h | - | ≤ 2.5% | ≤0.5% | ≤0.1% | |
1100 ° C 24h | - | - | ≤ 2.5% | ≤0.8% | |
1200 ° C 24h | - | - | - | ≤ 3.5% | |
Thermal Conductivity Rate (W / M.K) | (AT 200 ° C) | 0.022 | 0.022 | 0.023 | 0.025 |
(AT 400 ° C) | 0.024 | 0.024 | 0.026 | 0.031 | |
(AT 600 ° C) | 0.026 | 0.026 | 0.032 | 0.037 | |
(AT 800 ° C) | 0.030 | 0.030 | 0.034 | 0.042 | |
Standard size：
◇ Size: 1000 x 600mm, 500 x 250mm, 600 x 400mm
◇ Thickness: 5, 7, 10mm
◇ Special specifications and sizes can be customized according to customers' requirements
Product packaging:
◇ Vacuum packaging
Freight packing:
◇ Cartons ◇ Wooden cases ◇ Pallets
