Nano Flexible Insulation Board

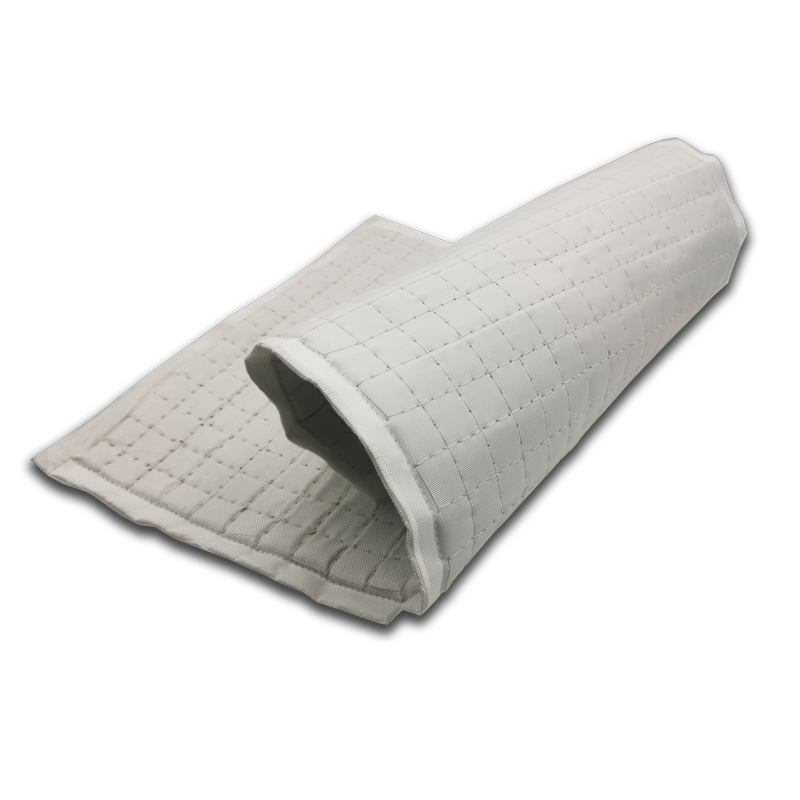

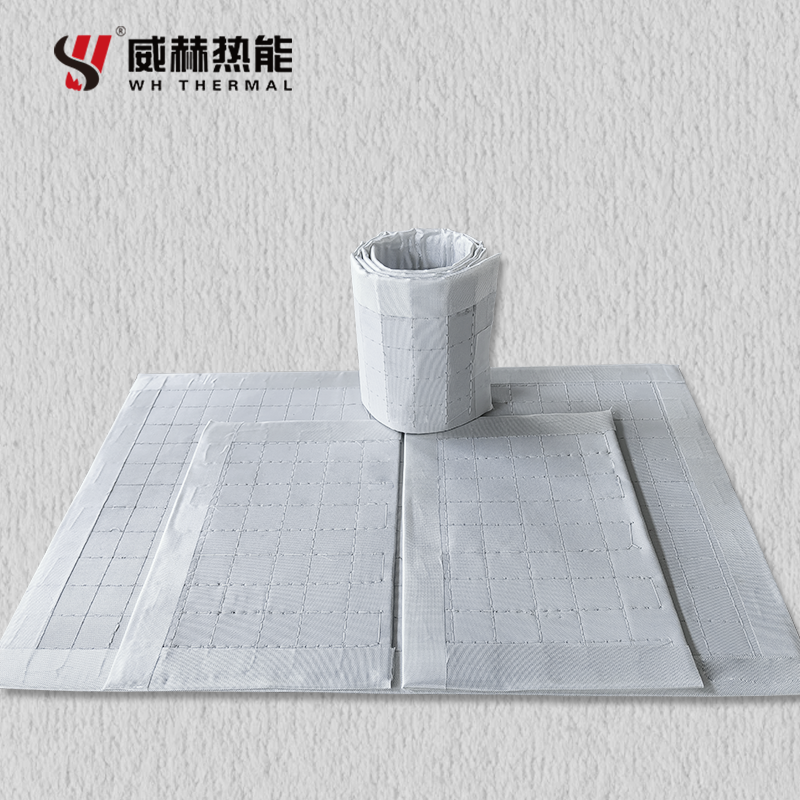

WH Nano Flexible Thermal Insulation Board is a nano high-temperature thermal insulation board that is covered by special high-temperature resistant fiber cloth and made into a grid shape.
Availability:
  • WHMF-43
  • 威赫


Product description:

WH Nano Flexible Thermal Insulation Board is a nano high-temperature thermal insulation board that is covered by special high-temperature resistant fiber cloth and made into a grid shape. It has a certain flexibility and can be installed more closely on pipes or curved surfaces. It is also suitable for irregular shapes. The heat preservation of equipment components greatly increases the convenience of construction, has ultra-low thermal conductivity, and its heat preservation performance is 3-4 times that of traditional materials.


Product Features

◇ High temperature resistance ◇ low thermal conductivity ◇ Environmental protection and safety ◇ Small Heat storage ◇ Flexibility ◇ Long service life



Typical application:

Mainly used in petrochemical, nuclear power, photovoltaic industry, new energy automobile industry, fuel cell industry, other curved industrial furnace lining and other industries.


Performance Index:

Product

WHMF-43 Nano flexible insulation board

Type

WHMF-43-850

WHMF-43-1000

Classification temperature (° C)

850

1000

Density (kg / m3)

160-300

160-300

Specific heat 800 ° C KJ / KG.K

1.08

1.08

Permanent linear shrinkage% (900 ° C)

850 ° C 24h

≤ 2%

≤0.5%

1000 ° C 24h

-

≤ 2.5%

Thermal Conductivity Rate (W / M.K)

0.026 (AT 200 ° C)

0.026 (AT 200 ° C)

0.031 (AT 400 ° C)

0.031 (AT 400 ° C)

0.037 (AT 600 ° C)

0.037 (AT 600 ° C)

0.042 (AT 800 ° C)

0.042 (AT 800 ° C)



Standard size:


◇ Size: 1000 x 600mm、1000 x 500mm、

◇ Thickness: 5-12 mm

◇ Special specifications and sizes can be customized according to customers' requirements


Product packaging

◇ Wrapped with fiber cloth and sewed with high temperature thread to form a grid



Freight packing:

◇ Cartons        ◇ Pallets
