WHMF-44
威赫
Product description:
Low temperature retaining material is made of special fiber materials and nano porous materials as the core material, processed by a special process combination, and is specially provided for the cold chain industry.Low temperature retaining material has excellent thermal insulation performance and is suitable for thermal insulation in medium and low temperature environments.
Product Features：
◇ High temperature resistance ◇ Low thermal conductivity ◇ Environmental protection and safety ◇ Small Heat storage ◇ Long service life
Typical application:
It is mainly used in cold chain logistics, medical and other industries.
Performance Index:

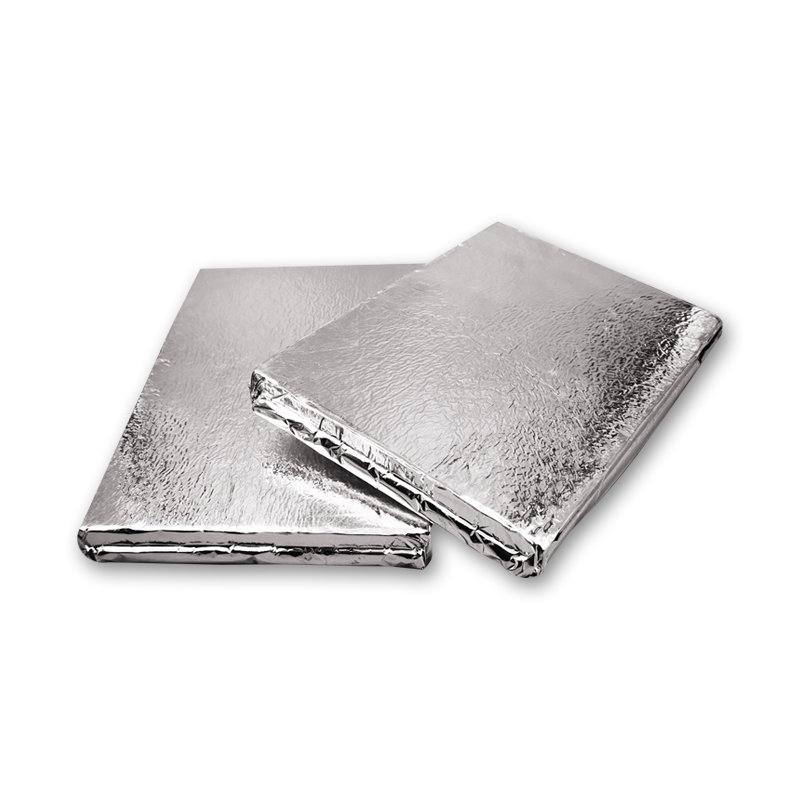

Product | WHMF-44 VIP Nano Insulation Board | ||
Type | WHMF-44A | WHMF-44B | |
Classification | Class A | Class B | |
Colour | Grey | Grey | |
Specific heat kJ / kg.k | 0.9 | 0.9 | |
Thermal Conductivity Rate (W / M.K) | (AT 20 ° C, At standard atmospheric pressure) | 0.020 | - |
(AT 20 ° C, ≤100Pa) | 0.0045 | 0.0042 | |
Thickness contraction before and after vacuum | 5% | 5% | |
Resistance value | Height | Height | |
Fire Rating | A1 | A1 | |
Standard Size：
◇ Size: 1000 × 600mm
◇ Thickness: 5-50mm
◇ Special specifications and sizes can be customized according to customers' requirements
Product packaging:
◇ Non-woven packaging ◇ Aluminum foil vacuum packaging
Transport Packaging:
◇ Carton ◇ Wooden box ◇ tray
Product description:
Low temperature retaining material is made of special fiber materials and nano porous materials as the core material, processed by a special process combination, and is specially provided for the cold chain industry.Low temperature retaining material has excellent thermal insulation performance and is suitable for thermal insulation in medium and low temperature environments.
Product Features：
◇ High temperature resistance ◇ Low thermal conductivity ◇ Environmental protection and safety ◇ Small Heat storage ◇ Long service life
Typical application:
It is mainly used in cold chain logistics, medical and other industries.
Performance Index:
Product | WHMF-44 VIP Nano Insulation Board | ||
Type | WHMF-44A | WHMF-44B | |
Classification | Class A | Class B | |
Colour | Grey | Grey | |
Specific heat kJ / kg.k | 0.9 | 0.9 | |
Thermal Conductivity Rate (W / M.K) | (AT 20 ° C, At standard atmospheric pressure) | 0.020 | - |
(AT 20 ° C, ≤100Pa) | 0.0045 | 0.0042 | |
Thickness contraction before and after vacuum | 5% | 5% | |
Resistance value | Height | Height | |
Fire Rating | A1 | A1 | |
Standard Size：
◇ Size: 1000 × 600mm
◇ Thickness: 5-50mm
◇ Special specifications and sizes can be customized according to customers' requirements
Product packaging:
◇ Non-woven packaging ◇ Aluminum foil vacuum packaging
Transport Packaging:
◇ Carton ◇ Wooden box ◇ tray
