Product description:

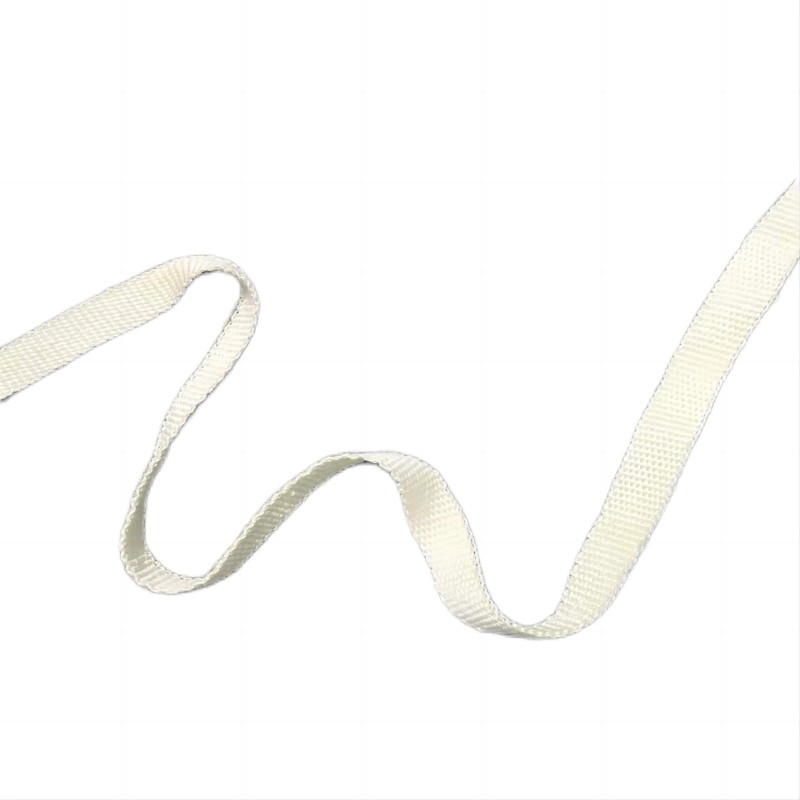

Ceramic fiber tape use ceramic fiber as the main raw material, glass fiber or heat-resistant steel wire as the reinforcing material, the ceramic fiber is spun into yarn, and then different textile processes and equipment are used to make different types of products.
Product features:
◇ No asbestos
◇ Low thermal conductivity, low heat storage, heat shock resistance
◇ High temperature resistance, chemical corrosion resistance
◇ Easy to construct
◇ High mechanical strength
Typical application:
◇ Sealing and heat insulation of various high-temperature furnaces and boilers
◇ Fire and high temperature insulation curtain
◇ Heat insulation and sealing of kiln flue
◇ High temperature valve and pump seal
◇ Sealing of burners and heat exchangers
◇ High temperature resistant insulated wire and cable surface wrap
◇ Sealing of furnace door and furnace car
◇ Surface wrapping of high temperature pipes
Performance Index:
Product Code | WHCF-72S | WHCF-72G |
Stainless steel wire reinforced ceramic fiber | Glass filament reinforced ceramic fiber | |
Classification temperature （° C） | 1260 | 1260 |
Melting point (° C) | 1760 | 1760 |
Bulk density (kg / m3) | 350-600 | 350-600 |
Thermal conductivity (W / mk, ASTM C201, average 800 ° C) | 0.17 | 0.17 |
Ignition loss(%) | 5-10 | 5-10 |
Chemical composition | ||
Al2O3 | 46.6 | 46.6 |
Al2O3+ SIO2 | 99.4 | 99.4 |
Standard size (mm) | ||
Fiber cloth | Width: 1000-1500, thickness: 2, 3, 5, 6 | |
Fiber tape | Width: 10-150, thickness: 2, 2.5, 3, 5, 6, 8, 10 | |
Fiber twisted rope | Diameter: 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 50 | |
Fiber round rope | Diameter: 5, 6, 8, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50 | |
Fiber square rope | 5 * 5, 6 * 6, 8 * 8, 10 * 10, 12 * 12, 14 * 14, 15 * 15, 16 * 16, 18 * 18, 20 * 20, 25 * 25, 30 * 30, 35 * 35, 40 * 40, 45 * 45, 50 * 50 | |
Fiber casing | Diameter: 10, 12, 14, 15, 16, 18, 20, 25mm | |
Fiber yarn | TEX: 330, 420, 525, 630, 700, 830, 1000, 2000, 2500 | |
Product description:
Ceramic fiber tape use ceramic fiber as the main raw material, glass fiber or heat-resistant steel wire as the reinforcing material, the ceramic fiber is spun into yarn, and then different textile processes and equipment are used to make different types of products.
Product features:
◇ No asbestos
◇ Low thermal conductivity, low heat storage, heat shock resistance
◇ High temperature resistance, chemical corrosion resistance
◇ Easy to construct
◇ High mechanical strength
Typical application:
◇ Sealing and heat insulation of various high-temperature furnaces and boilers
◇ Fire and high temperature insulation curtain
◇ Heat insulation and sealing of kiln flue
◇ High temperature valve and pump seal
◇ Sealing of burners and heat exchangers
◇ High temperature resistant insulated wire and cable surface wrap
◇ Sealing of furnace door and furnace car
◇ Surface wrapping of high temperature pipes
Performance Index:
Product Code | WHCF-72S | WHCF-72G |
Stainless steel wire reinforced ceramic fiber | Glass filament reinforced ceramic fiber | |
Classification temperature （° C） | 1260 | 1260 |
Melting point (° C) | 1760 | 1760 |
Bulk density (kg / m3) | 350-600 | 350-600 |
Thermal conductivity (W / mk, ASTM C201, average 800 ° C) | 0.17 | 0.17 |
Ignition loss(%) | 5-10 | 5-10 |
Chemical composition | ||
Al2O3 | 46.6 | 46.6 |
Al2O3+ SIO2 | 99.4 | 99.4 |
Standard size (mm) | ||
Fiber cloth | Width: 1000-1500, thickness: 2, 3, 5, 6 | |
Fiber tape | Width: 10-150, thickness: 2, 2.5, 3, 5, 6, 8, 10 | |
Fiber twisted rope | Diameter: 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 50 | |
Fiber round rope | Diameter: 5, 6, 8, 10, 12, 14, 15, 16, 18, 20, 25, 30, 35, 40, 45, 50 | |
Fiber square rope | 5 * 5, 6 * 6, 8 * 8, 10 * 10, 12 * 12, 14 * 14, 15 * 15, 16 * 16, 18 * 18, 20 * 20, 25 * 25, 30 * 30, 35 * 35, 40 * 40, 45 * 45, 50 * 50 | |
Fiber casing | Diameter: 10, 12, 14, 15, 16, 18, 20, 25mm | |
Fiber yarn | TEX: 330, 420, 525, 630, 700, 830, 1000, 2000, 2500 | |
